This tag is defined by Oracle and is available to all OPC Client applications.ĭerived Tag - Uses basic scripting and standard Logic and Math functions to provide calculations exceeding those of pre-defined tags. Oracle Cumulative Tag - Determines the difference between the current and previous values. Minimum Tag - Reads and persists a tag's minimum value over a defined time. Maximum Tag - Reads and persists a tag's maximum value over a defined time.
Link Tag - Links data between different protocols.

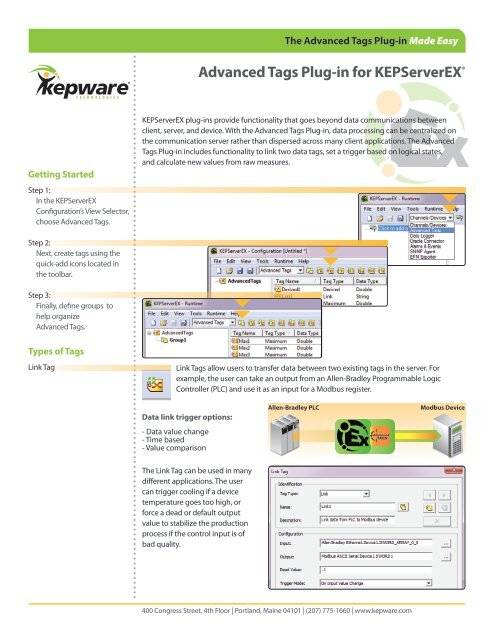

Get started now with easy-to-use, pre-defined tags.Īverage Tag - Calculates the average value of a tag over a defined time.Ĭomplex Tag - Groups multiple tags of varying data types as a single complex item or structure. The Advanced Tags plug-in for KEPServerEX will help improve decision-making and efficiency in your industrial control applications. This data often needs some form of calculation to identify deficiencies and help determine whether operations are functioning properly. Proper operations analysis requires that industrial control applications deliver an array of data. Using Tag Linking, Logic, and Math Functions for Operations Analysis These capabilities are extremely valuable for future analytics. Using Advanced Tags, users can measure the duration of operations, totalize events, perform averages over a group of sensors, set trigger conditions for data acquisition, and combine machine conditions to generate an overall machine state.
#ADVANCED TAGS KEPWARE EXPRESSION ARCHIVE#
Have questions? Leave a comment in the space provided below, or contact a Kepware representative by emailing by calling +1 20.The Advanced Tags plug-in for KEPServerEX offers a convenient, cost effective, and straightforward way to generate new data and aggregate existing data into information suitable for high-level archive and analysis. With the many similarities between these products, knowing the benefits and limitations of each can help you choose the right product for your application. Although this is more expensive, it bridges the gap between the two solutions.
#ADVANCED TAGS KEPWARE EXPRESSION DRIVER#
The OPC DA Client Driver facilitates the link between the servers while AT manipulates the data. Luckily, users can achieve this by using Kepware’s OPC DA Client Driver in conjunction with AT. If the customer also needed to find the average from two different PLCs connected through two different instances of KEPServerEX, however, it would be more difficult and require the functionality of AT and the flexibility of LM. Because data manipulation was needed, AT was clearly the appropriate solution. One of our Applications Engineers recently spoke with a customer who produced drilling equipment and needed to find the minimum and maximum size of each part for Quality Assurance purposes. It also costs about $960 more than LinkMaster. It is limited by only being able to run on one instance of KEPServerEX, however-unless it is coupled with our OPC DA Client Driver. It has the ability to “massage” data by executing math, logic, or analysis at the tag level, thus bringing data closer to the source. As a plug-in, AT can be centralized on the communications server rather than dispersed across multiple locations. The Advanced Tags Plug-In includes functionality to link two data tags, set a trigger based on logical states, and calculate new values from raw measures. The data exchange was only through one server and required a simple data transfer, so it was financially smarter for the customer to go with the LinkMaster option. ExampleĪ customer called recently who was monitoring a steel plant and needed to link a Temperature Tag from PLC A in a furnace to PLC B. While LM may be great for simple, bulk data transfers or when moving data between multiple OPC DA servers, it is less functional for more complex situations. For example, it can only link data on a data change or a static interval. It is limited in its functionality within those links, however. LM’s strengths come from its ability to link tags both through different OPC servers and within the same OPC DA server. LinkMaster is a standalone product that acts as a bridge between OPC servers, OPC-enabled applications, or legacy DDE products. In this blog, I will discuss these products and even provide customer examples to help make that decision a little easier. Deciding which one is right for your application can be tricky, however. Neither LinkMaster nor Advanced Tags have a tag limit, and both are equally reliable and work extremely well with any KEPServerEX driver. Kepware has two applications that move this data and share similar functionalities: LinkMaster (LM) and Advanced Tags (AT).
Advanced Tags Posted by Tucker Emersonīeyond the basic needs for an OPC server, many companies have to move data between applications, devices, and systems.
Friday, DecemKepware Product Showdown: LinkMaster vs.
